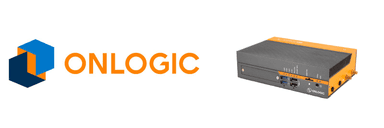

OnLogic K410

A low profile, rugged system built for the challenges of the IoT Edge.

BUILT FOR IOT WITH INTEL ELKHART LAKE

Intel's latest Atom processors have been specifically designed for IoT applications, making them a perfect complement to OnLogic's latest passively cooled, rugged chassis design. Powered by a Dual-Core Intel Atom x6211E, or Quad-Core x6425E processor, Karbon 410 offers a unique combination of features, power and connectivity. The integrated Intel® Programmable Services Engine (Intel® PSE) enables support for a host of connectivity and power management functions, including CAN bus and automotive power control for in-vehicle applications. All of this makes Karbon 410 an ideal rugged Industrial IoT gateway, edge device, embedded controller or the backbone for medical, energy management or industrial control applications.

PROTECTED BY HARDSHELL FANLESS TECHNOLOGY

Measuring just over 2" tall, and with support for Wall, DIN Rail or VESA mounting, the Karbon 410 was designed to be installed anywhere you need ultra-reliable computing power. Sensitive internal components are protected from dust, debris, chemicals, and moisture with OnLogic's integrated Hardshell™ Fanless Technology. Its rugged design, -40° to 70°C operating temperature range, 9 to 48 V power input, and the absence of any moving parts dramatically improve the lifespan and reliability of the system. The Karbon 410's modularity and tiny footprint make it perfect for even the most inhospitable Industrial IoT or Industry 4.0 environments. Environmental testing is in process for Medical EMC (60601-1), Rail EMC (50121), Maritime EMC (60945), Automotive E-mark, as well as IEC and MIL-STD-810 shock and vibration. All of this performance is safely delivered inside a system NRTL listed to UL/IEC 62368-1, accompanied by a CB scheme.

CUSTOMIZE YOUR CONNECTIVITY

The Karbon 410 was designed from the ground up to give you the capabilities you need for your IIoT project. That forethought extends to the available connectivity and expansion options. Standard I/O includes 2x USB 3.2 & 2x USB 2.0 ports, 2x 1GbE LAN (with optional PoE), CAN bus (via 3-pin terminal block) and a DisplayPort. Onboard automotive ignition control allows you to program the on/off state of the system based on the power state of a vehicle, and the system's integrated SIM slot and optional WiFi and 4G LTE give you wireless access to your critical data from anywhere. In addition, you can leverage the system's expansion capabilities to add dual COM or GPIO.
